Transition Timing on a Click to Reveal

Darrell,

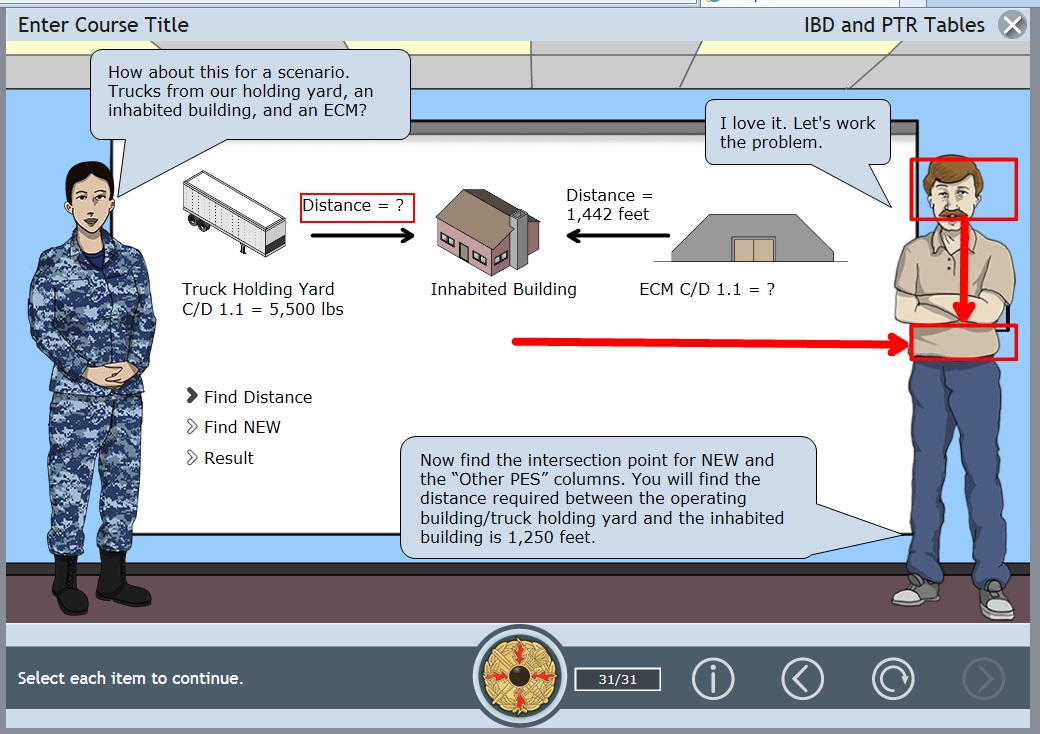

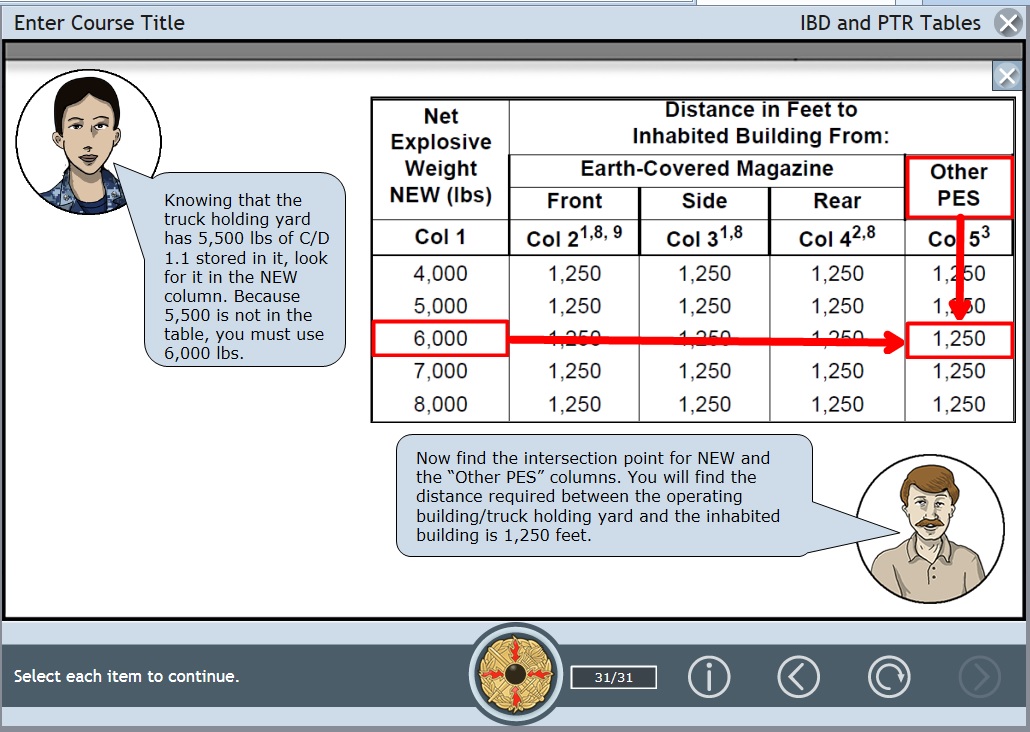

Sorry. I finally got frustrated and just did away with the click to reveal aspect of the screen and made it a few individual screens. Now that I see Tim's post below yours though I may give it another try. I appreciate you being willing to help! Thanks.

I never understood why you can add a delay to a transition... I'd advise to use delays for actions only, as it's easier to control.

You need a variable to know which of the three buttons has been clicked, i.e. which of your animations is running.

Create a variable called e.g. "path", initial value = 0.

Add an action to each of your buttons:

On: Click

Action: Modify variable

Target: path

Type: Set equal to

Value: 1 (for Button 1), 2 (for Button 2), 3 (for Button 3)

Now you know which of the buttons has been clicked.

Change your animation to not run on click of the button, but the next step to be run when the previous has been done, and add conditions:

Only if "path" Is equal to "1" for button 1 etc.

Tim

Can you post the file?

Hm, I wasn't able to edit or delete my previous post and I thought this was easier. I attached a working sample although it's only partly similar to my description....

Mind, it would be easier without transitions.

Allthough Tim's description works perfect and is indeed a great solution to get 'sequences' with timing like this done inside Lectora, i tend to use GSAP and especially TimelineMax for it. With the use of TimelineMax in GSAP you can setup any sort of sequence or timeline and easily ( well all is done in Javascript, so easy depends on your knowledge of Javascript ) change either timing, delays, pause...even play the whole sequence backwards.

For education use i will make a sample showing the use of TimelineMax.

~Math

The important thing is to understand the sequence in that the actions and effects are executed. If you have an action with a delay to show an object with a transition (that has a delay) the sequence is:

Action is executed -undefined Object is visible

When you have three actions on a button to show three objects with different delays, all of these actions are "executed" (in my above definition) immediately when the button is clicked, i.e. the delay is initialized. You can't interrupt this sequence once an action "is executed".

In my sample I'm using action groups to split up the sequence. Once a button has been clicked there's no way to prevent Running the action groups. But the actions in the group make a new sequence. These actions have no delay and are dependent on a variable. If you click Button 1, action group B1_S3 will be run 4.5 seconds later. The action is the group is "executed" immediately, but it is not "run" if "path" has been changed by clicking another button.

A problem that comes with transitions is the step "Transition is run". It takes a while to complete the transition and from a technical perspective the object is "hidden" until the transition has been finished. An action to hide the object that is currently fading in has no effect, as (again technically) it is still hidden. That's why there are so many "Hide" actions in the groups.

Tim,

Your sample title is awesome. Thank you so much for that. I'm just going over it trying to understand it, and am going to show it to our programmer tomorrow and see if it can be made into a template for our courses.

undefined

Thanks again!
