Passing HTML extension value to lectora variable

What you actually need:

1. A variable in Lectora

   The variable needs a name, e.g. "slider1"

2. Awareness that Lectora renames variables during publication

   A variable called "slider1" will be called "Varslider1" after publication, a variable named "var_slider1" in Lectora will be called "Varvar_slider1"

3. Slight modification of your current script

   You have a function that inserts the slider value into that "demo1" span. The code to put the value into that Lectora variable would be "Varslider1.set(this.value);" (depending on the name of course)

4. You need to use that variable in a Lectora action otherwise it won't exist

OK thanks for your messages, so i have added an action to a submit button in lectora.

"Run JavaScript" and added the following:

Varname.getValue(this.value);

Var_slider1.set(this.value)

I get an error message after pressing the submit button "[OnMClkRunJS] ReferenceError: Varname is not defined"

What should "Varname" be?

Just to add on to Tim's answer. You can find the JavaScript name of the Variable in the Variable Manager.

As Tim says use Varname.set() to set the variable and Varname.getValue() to get the current value.

Lectora Online identifies the JavaScript variable names in JavaScript and HTML Extension Header Scripting and includes them automatically. Otherwise you should do as Tim suggests and use a variable somewhere so it is included and available for scripting that is being done.

I know you're already on your way in this direction, however, in the future you might want to consider a CSS slider. Pretty easy to work with. The attached works fine with the wonky type of responsive programming this program outputs, however, I did not alter the JS for "seamless play" so if you want tot use it you'll have to target the parents - just don't use seamless. I posted this a while back and updated it with the newest minimized Jquery.

Just another option, there are numerous. Math's suggestion is a good way to go as well.

undefined

Or use jQueryUI..lots of UI samples like a slider are easily to implement in Lectora.

Could i have the lectora editable file so that i can see how this works.

One other thing about the CSS slider above. The CSS is old but works perfectly. It could use updating (I'm too lazy) as most of it not all the vendor prefixes aren't necessary anymore.

Sorry, I thought I included it in the zip. Here is the awt and some of the other support files in case you need them.

Thanks that works well. All i need to know now is out to pass the slider value to a variable in lectora.

I've put the code from above into Darrels sample.

The sample requires jQuery. It should work when you also copy the HTML extensions on title level "jquery" and "css".

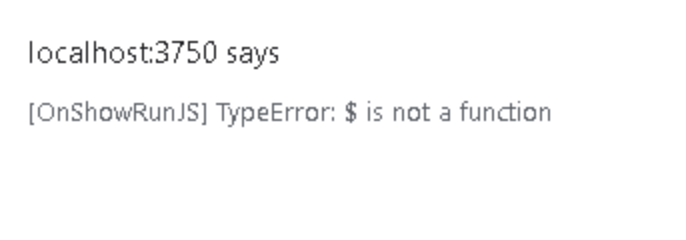

It works fine on its own. copy page and add assets and i get error, see attached

Please see attached

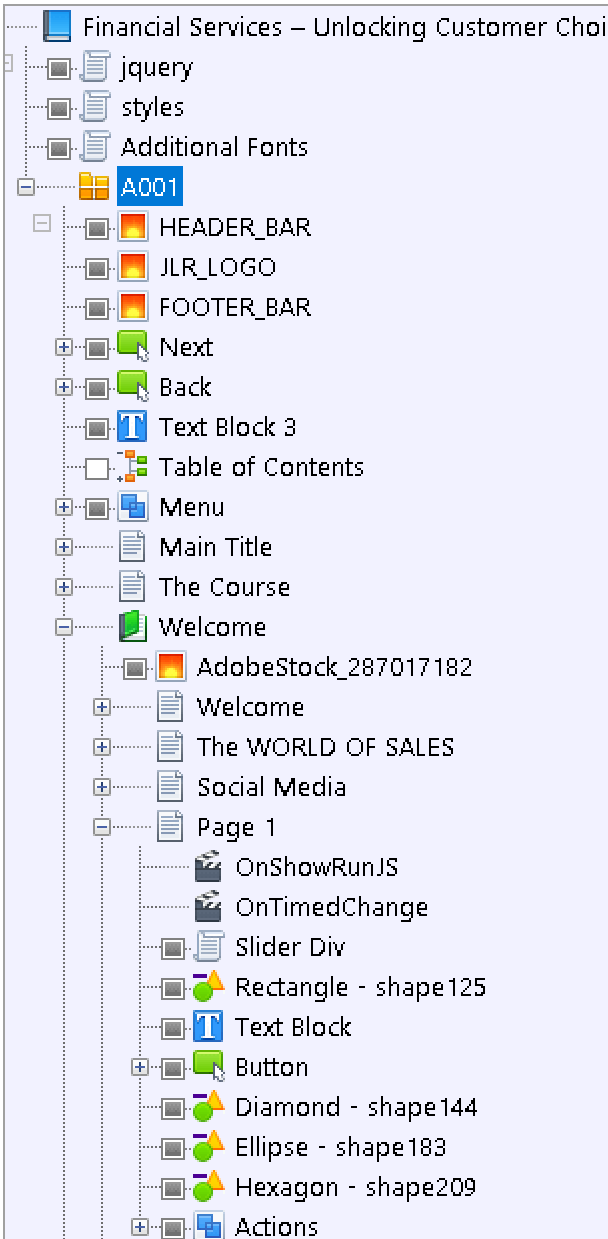

When you publish to Scorm nothing should be on title level. Try to move it to AU Level, i.e. where "HEADER_BAR" is. You could also move it to the page, if you don't need it for the whole course.

I had already done that please see attached.
